THREE IN ONE ( TILLER WITH HARROWER BLADE AND LEVELER SHEET )

THREE IN ONE ( TILLER WITH HARROWER BLADE AND LEVELER SHEET )

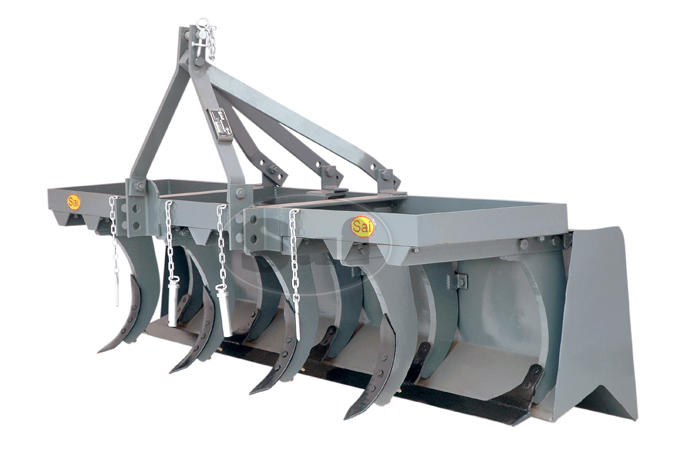

Three In One ( Tiller with Harrower Blade and Leveler Sheet ) is a versatile and multipurpose tiller with its large number of applications. Tiller tines perform primary tillage operations with blade harrow cutting weeds and grass along with leveler sheet does the leveling, completing all the operations done simultaneously saving time and fuel required for these consecutive operations. Easy interchangability and replacement of all the parts enables it for alternate uses.

Special features
THREE IN ONE ( TILLER WITH HARROWER BLADE AND LEVELER SHEET )
request a quote
»
Heavy and sturdy mainframe construction.
»
 Heavy duty thicker tines to resist heavy bending loads and thicker sheet to resist heavy tensile loads.
»
Sharp edged hardened harrower blade for easy cutting of weeds, clods and uneven lands.
»
Easy interchangability of blades with points to use for only tilling operations alternately.
» Provision of space adjustment between tines.
» Easy to mount on tractor by three point linkages and easy to use.
»
Provision to be used alternately as only tiller, leveler and seed drills with adjustments and extra attatchments.

MODELS & SPECIFICATIONS

MODELS PARTICULARS. WIDTH
in mm. 		LENGTH
in mm. 		HEIGHT
in mm. 		UNDERFRAME
CLEARANCE
in mm. 		WEIGHT
in Kgs.
7 TINE 3 IN 1 For 35 HP to 45 HP TRACTORS 1590 490 1040 470 265
9 TINE 3 IN 1 For 46 HP AND ABOVE TRACTORS 2055 490 1040 470 315
All above specifications are approximate.
As continuous improvements are contemplated, the illustrations and descriptions are not binding. Manufacturers reserve right to discontinue or make change in above models without any prior notice.
