Rigid Cultivator

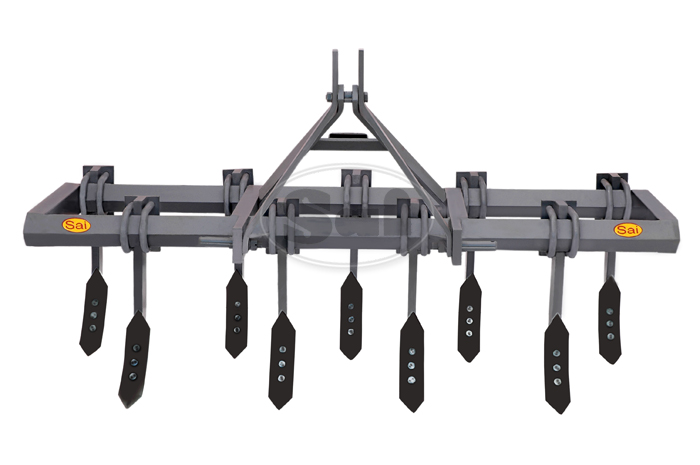

RIGID CULTIVATOR
Rigid Cultivator is capable to withstand tough working conditions at heavy soils. With deep positive penetrations it can break up hard soil and uproot stubbles to leave the ground perfectly worked. With the spacing adjustments of tine on the frame it can be used for multiple no. of applications and even for paddy cultivation requiring shallow ploughing.

Special features
RIGID CULTIVATOR
request a quote
»
Heavy duty channel sturdy frame to withstand heavy loads, bending stresses and strains.
»
Thicker tines to restrain from sudden impact loads.
»
Sharp edged points to give easier and deeper penetrations with effective uprooting of crop residue and cutting of heavy soil clods at any soil conditions.
»
Provision for spacing adjustments between tines to be useful for various soil conditions and various crops.
» Sharp edged Reversible shovels that gives deeper penetrations at any soil conditions and can be reversed and used on the other side after complete wear of one side.
»
Can be used for uprooting after cutting crops or primary tillage operations before Sowing.

MODELS & SPECIFICATIONS


MODELS PARTICULARS LENGTH in mm WIDTH in mm HEIGHT in mm. ASSEMBLED ROW WIDTH in mm. UNDER FRAME CLEARANCE
in mm.
WEIGHT
in Kgs.
7 TYNE WITH SHOVELS- HD

7 TYNE WITH DUCK FOOT-HD
FOR 25 HP TO 35 HP TRACTORS 1433 605 1015 210 430 185
9 TYNE WITH  SHOVELS- HD

9 TYNE WITH DUCK  FOOT-HD
FOR 36 HP TO 50 HP TRACTORS 1843 605 1015 210 430 210
